Proper installation is fundamental to the safe and reliable operation of industrial battery systems. This guide covers essential preparation, procedures, and technology-specific considerations.
Site Preparation Requirements
Before any battery arrives on site, verify that your facility meets these requirements:
Structural Readiness:
- Floor can support battery weight (typically 1500-3000 kg/m²)
- Temperature maintained between 20-25°C
- Ventilation compliant with IEEE 1635/ASHRAE 21 standards
- Adequate lighting for installation and maintenance
Safety Infrastructure:
- Eyewash stations providing 15 minutes of continuous flow
- Safety showers delivering minimum 20 gallons per minute
- Both positioned within 6 meters of battery areas
- Spill containment systems in place
Safety Protocols
All personnel involved in installation must have:
- Acid-resistant protective gear
- Chemical splash protection (goggles, face shields)
- Insulated tools rated for DC voltage
- Training in battery handling procedures
- Understanding of emergency response procedures

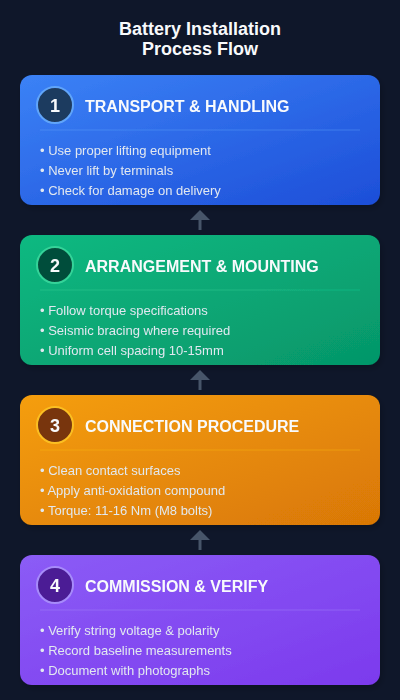

Installation Steps
1. Receiving and Inspection
- Verify shipment against order documentation
- Inspect for shipping damage
- Check electrolyte levels (flooded cells)
- Measure open-circuit voltages
2. Positioning
- Never lift batteries by terminals
- Use appropriate lifting equipment
- Maintain 10-15mm spacing between cells for ventilation
- Ensure level placement on battery racks
3. Connection
- Follow manufacturer torque specifications (typically 11-16 Nm for M8 bolts)
- Apply anti-corrosion compound to terminals
- Install temperature sensors where specified
- Connect to monitoring systems
4. Commissioning
- Verify cell voltages within specification
- Record baseline impedance measurements
- Perform initial charge per manufacturer instructions
- Document all readings for future reference
Technology-Specific Guidance
Lithium-ion Systems
- Class D fire suppression required
- Thermal runaway detection systems mandatory
- BMS integration and verification
- Cell balancing confirmation
NiCad Systems
- Specialized cadmium handling procedures
- Alkaline-resistant tools required
- 140% first charge protocol typically required
- Electrolyte specific gravity verification
VRLA/VLA Systems
- Hydrogen detection systems essential
- Acid-resistant flooring verified
- Proper ventilation calculations completed
- Float voltage adjustment for temperature
Common Installation Pitfalls
Avoid these frequent errors:
- Improper torquing - Both under and over-torquing cause problems
- Inadequate ventilation calculations - Results in hydrogen accumulation
- Mixed battery types in single strings - Different aging characteristics cause issues
- Missing thermal barriers for lithium systems - Fire safety requirement
Documentation
Maintain records of:
- Installation dates and personnel
- Baseline voltage and impedance readings
- Torque values applied
- Any deviations from specifications
- Commissioning test results
After Installation
Schedule regular maintenance checks and ensure operational staff understand:
- Normal operating parameters
- Alarm conditions and responses
- Emergency shutdown procedures
- Routine inspection requirements
For assistance with your installation project or questions about specific requirements, please contact us.
