Proper ventilation is essential for any battery installation that produces hydrogen gas during charging. The EN 50272-2 standard provides the methodology for calculating required ventilation rates.
Why Hydrogen Venting Matters
During charging, lead-acid batteries release hydrogen gas through electrolysis. Without adequate ventilation, hydrogen can accumulate to dangerous concentrations:
- Lower explosive limit (LEL): 4% hydrogen in air
- Alarm threshold: Typically set at less than 1%
- Shutdown threshold: Typically set at 2%
The EN 50272-2 Standard
This European standard specifies safety requirements for secondary batteries and battery installations, including:
- Ventilation calculation methodology
- Safety distance requirements
- Electrical installation guidelines
- Maintenance procedures

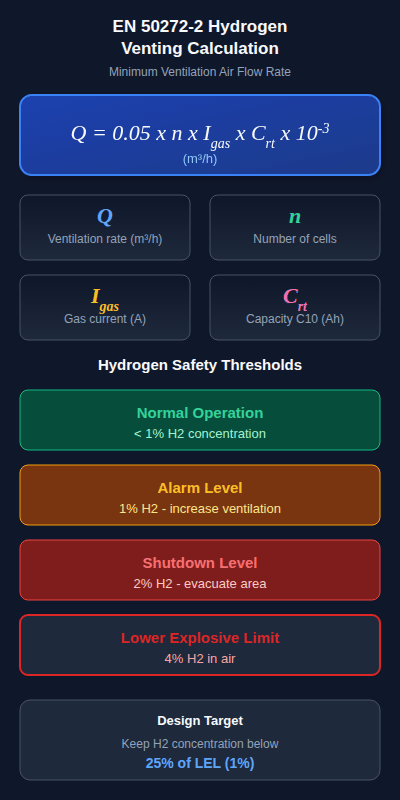

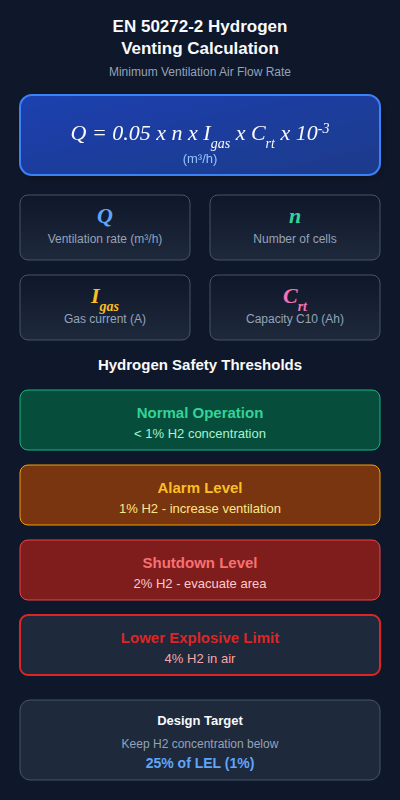

Calculation Factors
The ventilation rate depends on several variables:
Battery Parameters
- Number of cells
- Cell capacity (Ah)
- Charging current
- Gas emission factor
Installation Parameters
- Room volume
- Natural ventilation rate
- Safety factor requirements
Using Our Calculator
We've developed a free calculator tool that applies the EN 50272-2 methodology to your specific installation parameters. The calculator provides:
- Required air flow rate (m³/h)
- Minimum ventilation area for natural ventilation
- Recommended fan capacity for mechanical ventilation
Access the Hydrogen Venting Calculator
Practical Considerations
Beyond the calculated requirements, consider:
Natural vs. Mechanical Ventilation
Natural ventilation is suitable when:
- Adequate inlet and outlet openings can be provided
- Temperature differentials support air movement
- Building location allows external air exchange
Mechanical ventilation is required when:
- Natural ventilation is insufficient
- Room is internal without external walls
- Higher reliability is needed
Hydrogen Detection
Regardless of ventilation method, continuous hydrogen monitoring is recommended:
- Sensors positioned at high points where hydrogen accumulates
- Alarm and shutdown setpoints configured
- Regular calibration schedule maintained
Ventilation Design
Key design principles:
- Air inlet at low level to provide fresh air sweep
- Air outlet at high level where hydrogen accumulates
- Avoid dead spots where gas can collect
- Consider explosion-proof electrical equipment in ventilation path
Related Standards
For complete compliance, also reference:
- IEC 62485-2 - Safety requirements for secondary batteries
- IEEE 1635/ASHRAE 21 - Ventilation of stationary battery rooms
- AS/NZS 2676 - Guide to installation of batteries (Australian/NZ)
When to Seek Expert Help
While the calculator provides a good starting point, professional review is advisable for:
- Large installations (>100kWh)
- Complex room geometries
- Multi-technology installations
- High-reliability applications
We're available to review your ventilation design and provide recommendations. Please contact us to discuss your project requirements.
