Understanding how battery capacity changes over service life is essential for proper system sizing. This article examines degradation patterns across different technologies and the standards that guide sizing decisions.
The IEEE-485-2010 Aging Margin
The IEEE-485 standard recommends including a 1.25 aging margin in lead-acid battery sizing calculations. This factor accounts for the predictable capacity decline that occurs throughout battery service life.
In practical terms, this means:
Rated capacity should be **at least 125%** of the expected end-of-life load requirements.

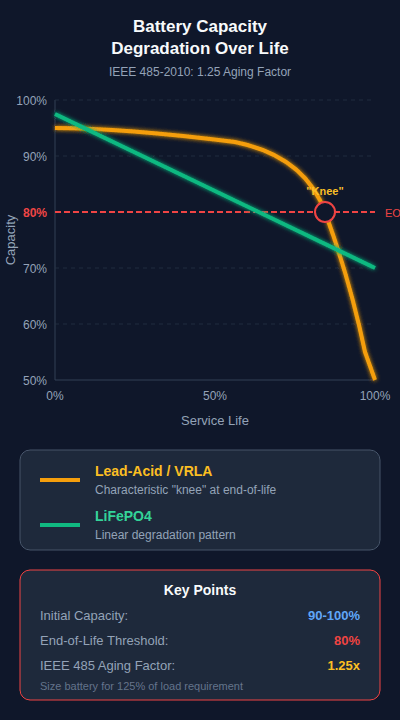

Lead-Acid Battery Degradation Patterns
Vented Lead-Acid (Long-Duration Discharge)
For discharge rates of one hour or longer, capacity follows a characteristic pattern:
- Initial period: Capacity remains relatively stable
- Mid-life: Gradual, predictable decline
- End-of-life: Rapid capacity "knee" at approximately 80%
The "knee" represents the point where capacity decline accelerates, typically signaling approaching end of useful life.
VRLA and High-Rate Discharge
Short-duration applications present additional complexity:
- Internal resistance increases faster than capacity decline
- Performance at high rates may decrease substantially below 80%
- The rate-specific "knee" occurs earlier than for long-duration discharge
- Multiple variables make precise prediction more difficult
Warranty and Replacement Standards
Manufacturer Warranties
Standard warranty terms typically specify:
- Initial capacity: 90-100% upon delivery
- Warranted capacity: 80% of published rating
- Warranty period varies by technology (5-20 years typical)
IEEE Replacement Recommendations
IEEE Standards 450-2002 and 1188-2005 recommend battery replacement when capacity drops to 80% of rated capacity. This threshold provides a safety margin before the accelerated decline phase.
Exception Cases
Some manufacturers guarantee 100% capacity maintenance throughout service life. Notable examples include certain Planté cell designs, which may justify using a 1.00 aging factor rather than 1.25.
Always verify specific manufacturer guarantees before adjusting aging factors.
LiFePO4 Considerations
Lithium iron phosphate batteries are currently sized using modified IEEE 485 methodologies, though the standard was originally developed for lead-acid technology.
Why This Approach Works
The IEEE 485 methodology is conservative for LiFePO4 because:
- More linear degradation: LiFePO4 shows gradual, predictable decline rather than a pronounced "knee"
- Better temperature performance: Less capacity variation with temperature
- Deeper discharge tolerance: Supports deeper depth of discharge without accelerated aging
- Longer cycle life: 5,000+ cycles vs. hundreds for lead-acid
- Consistent SEI layer growth: More predictable than lead-acid grid corrosion
Current Limitations
Long-term field data for LiFePO4 in standby applications remains limited. As more installations reach end-of-life, methodological refinements may become available.
Practical Sizing Example
For a critical load requiring 100kWh at end of life:
[Table content - see original article]
Monitoring Capacity Over Time
Regular capacity testing helps verify actual degradation matches expectations:
- Annual testing for critical applications
- Trend analysis to predict replacement timing
- Impedance testing as a complementary indicator
- Documentation for warranty and planning purposes
Planning for Replacement
Understanding capacity trajectories enables better planning:
- Establish baseline capacity at commissioning
- Track capacity through regular testing
- Project when 80% threshold will be reached
- Budget for replacement accordingly
- Consider lead times for procurement
Summary
Proper sizing requires understanding both the aging characteristics of your chosen technology and the standards that guide design decisions. The 1.25 aging factor provides appropriate margin for most lead-acid applications, while LiFePO4 may offer more predictable long-term performance.
